40kVA 3 Phase UPS Power Conditioner with Voltage Regulator & Battery Backup - Reliable Power Protection for Data Centers, Industrial Equipment, and Critical Systems
$12622.49 $22949.99
-45%
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:12 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:98393706
Guranteed safe checkout
Product Description
UPS User/Installation Guide:
Integrated Network Card User Guide:
Spec Sheet/Cut Sheet:
External Battery Cabinet User/Installation Guide:
4 Tier Power Protection System – Surge Protection, Real Time Power Conditioning With Voltage Regulation, Pure Sine Wave Output, & Always On Double Conversion Backup Power Technology (Phase Locked To Utility Power Allowing Seamless Transition To Backup Power).
Do you need a PDF quote or a custom emergency backup solution? Email us at .
Multiple Backup Time Options:
| Model Number: | Description (Under Battery Options Drop Down): | Approximate Backup Time At Full Load: |
| BBP-AR-33-40K | UPS Only (No Batteries) | 0 Minutes |
| BBP-AR-33-40K-WEBP | UPS Plus 1 Extra External Battery Pack (40 Batteries, 12 Volts, 100 Amp Hours Each) 48 KWH | 35 Minutes |
| BBP-AR-33-40K-W2EBP | UPS Plus 2 Extra External Battery Packs (80 Batteries, 12 Volts, 100 Amp Hours Each) 96 KWH | 1 Hour 10 Minutes |
| BBP-AR-33-40K-W3EBP | UPS Plus 3 Extra External Battery Packs (120 Batteries, 12 Volts, 100 Amp Hours Each) 144 KWH | 1 Hours 45 Minutes |
| BBP-AR-33-40K-W4EBP | UPS Plus 4 Extra External Battery Packs (160 Batteries, 12 Volts, 100 Amp Hours Each) 192 KWH | 2 Hours 21 Minutes |
| BBP-AR-33-40K-W5EBP | UPS Plus 5 Extra External Battery Packs (200 Batteries, 12 Volts, 100 Amp Hours Each) 240 KWH | 2 Hours 56 Minutes |
- Model: BBP-AR-33-40K
- 40000 VA (40 kVA) / 40000 Watt (40 kW)
- 3 Phase
- Tower
- Pure Sine Wave Clean Output To Operate And Maximize The Life Of Even The Most Sensitive Electronics
- Online (Double Conversion) - Highest Level Of Protection Available - Battery Power Always Engaged, No Switching Delay
- Accepts Generator Power (Direct or On Automatic Transfer Switch)
- Constant Voltage Regulation
- Constant Frequency Regulation
- Factory Warranty: 3 Years On Electronics And 1 Year Warranty On Batteries
- Optional Extended Warranty: 6 Years On Electronics And 3 Year Warranty On Batteries
- Heavy Duty Industrial Grade For Constant Use
- For Use With Laboratory Instruments
- For Use With Medical Devices
- For Use With Hospital Equipment
- For Use With Sensitive IT Equipment
- 1.0 Power Factor (Unity Power Factor)
- UL Listed
- Management And Monitoring Software Included
- Battery Configuration:
- Requires 1 Or More External Battery Cabinets
- For More Information
- Input:
- 138~270 VAC 3 Phase @ 50% Load
- 173~253 VAC 3 Phase @ 100% Load
- Output:
- 208/220 VAC 3 Phase
- Full Load Estimated Run Time On Battery Power:
- For Battery Cabinet Configurations
- Operating Temperature Rating: 0C ~ +40C
- Humidity: <95% And Non-Condensing

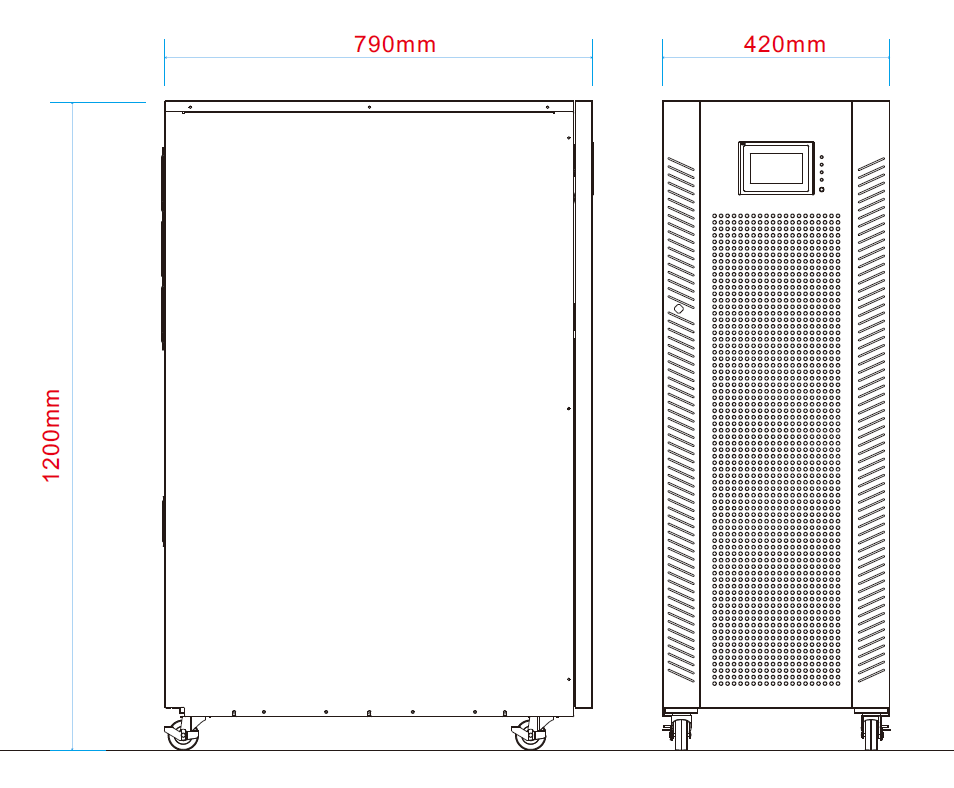

- Dimensions D X W X H (mm): 790 X 420 X 1200 / (inches) 31.5” X 17” X 47.5”
- Net Weight: 113 Kgs. (249 lbs.)
